Linksys SPA1001 BYOD VoIP Settings and Configuration GuideLinksys SPA 1001

With BYOD option, inexpensive, easy to install and simple-to-use, the Linksys SPA-1001 VoIP adapter connects to your standard telephone and high-speed Internet enabling Internet phone service for your home.

STEP 1

You must first determine what IP address it received. To do this, you need to pick up the phone attached to the Line 1 jack and dial: **** (four asterisks)

then dial: 110 #

and you will be told the IP address of your device (e.g. 192.168.0.100)

STEP 2

Go to any browser equipped computer on your network and enter the address: http://<IP ADDRESS>/ where <IP ADDRESS>/ is replaced by the address that was given to you in STEP 1.

STEP 3

Click on the "Admin Login" button near the top right side of the screen, then click on the "Line 1" tab.

linksys configuration step 3



STEP 4

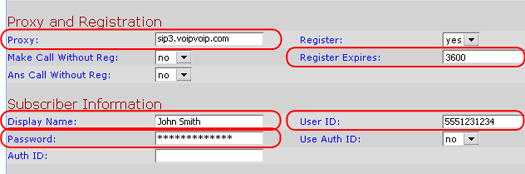

You need to modify only a few parameters from the factory default. They are listed here:

Proxy: sip3.voipvoip.com

Display Name: Enter your full name, this will show up as part of your caller ID.

User ID: Enter the account number assigned to you when signed up for VoIPVoIP service.

Password: Enter the password that you chose when you signed up for the service.

linksys configuration 4



STEP 5

Click on the "Submit All Changes" button at the bottom of the form.

linksys configuration step 5



STEP 6

Change the “Preferred Codec” to G729a. Also change the “Use Pref Codec Only” to No.

linksys configuration step 6



STEP 7;

Click on the "Submit All Changes" button at the bottom of the form.

linksys configuration step 7



STEP 8

Make Calls!

Problems? If you get one-way audio, or cannot get a dial tone or cannot make/receive calls with your VoIP device, you are probably behind firewall. Your router's firewall (also known as NAT) is blocking certain operations of the VoIP telephone adapter or some of the settings of the adapter is not entered correctly.

If you are sure that your account number & password is entered correctly to your device, before trying to resolve this issue on your router or voip device, you can get all device settings (other than account number and password) remotely from our servers.

In order to receive configurations remotely go to VOICE/ ADVANCED and find PROVISIONING tab and change the field below:

- Profile Rule: http://config.voipvoip.com/$PN

Click on the "Submit All Changes" button at the bottom of the form. Unplug your device from the power and plug back after 5 seconds to reboot the device. Device will now get settings remotely from our servers.

Test again to make and receive calls.

Still Problems? Please check our VoIP device troubleshooter



NAT/Firewall Issues

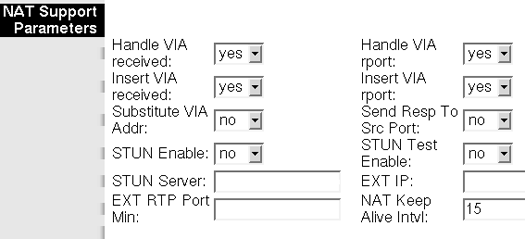

If you get one-way audio, you are probably behind NAT. Make the following changes on LINE 1 (you have to click on advanced view to see these options)

linksys nat configuration



on the SIP menu;

linksys nat configuration 2



If the phone fails to login, please take the time to double check your configuration as above. If everything appears to be correct, the problem may be your firewall.

Click here for our voip troubleshooter.
